RX2200 MAXXEXU Wiring! 7/1/2023
So begins the fun time of wiring!

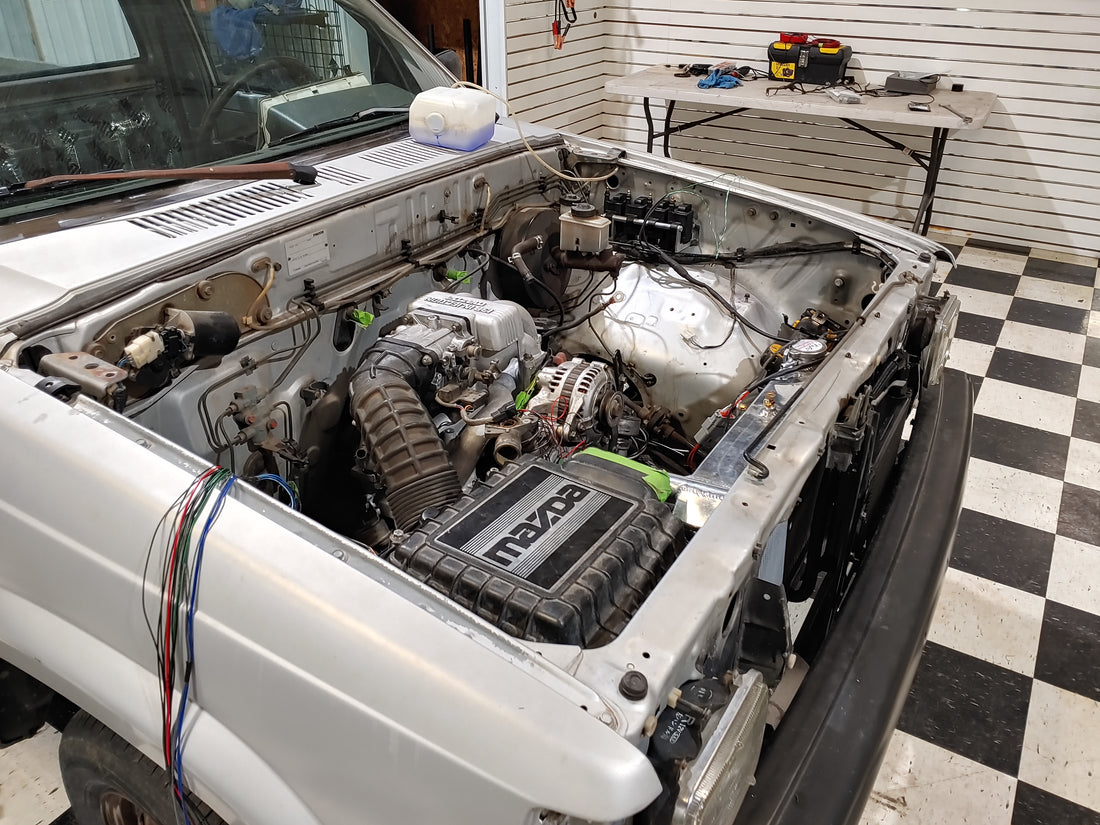

I bought a MAXXECU with a Flying Lead Harness crafted by MACHINE WERKS in Santa Barbara CA to start the process. They also hooked me up with AEM Coils with a custom bracket to mount all 4 of them onto the inner fender. This engine is running an S5 13b intake manifold with the 6port actuators and VDI still installed. The plan is to make them operational using positive pressure from the exhaust header and tuning the ECU to add more fuel at the same time. Im running stock fuel injectors with a S4 fuel rail. The fuel pump is a OEM Rx7 pump I fitted to a OEM B2200 fuel pump/sender bracket so that its in the tank. Im going to run the BAC valve to help with low idle speeds. The radiator is a FB radiator from CHAMPION RADIATORS complete with a SPALL fan from them as well.
